2 丹麥 mec 輕觸開關3
https://www.gte.url.tw/ 聯輝電子有限公司

2 丹麥 mec 輕觸開關



mec logo

相關連結 Click here
mec 自1938年至今, 以生產特長壽命和全密封式輕觸開關見稱 兩大系列Unimec & Multimec, 由此基礎而變化出千萬種組合 充分發揮丹麥模具與塑料之優點 開關壽命從50萬次至1,000萬次不等, 按您的需要來選用 應用有程控交換機, 調度台, 彩色超聲波, 點鈔機, 各種測試機等 一般以用在面板之訊號處理為主


觀看大圖

丹麥 mec multimec 5 series switch - 可用 夜視影像系統 NVIS LEDs

multimec 5 series 型錄 Click here







Distinctive features

Multimec 5E/5G is a new generation switch of the 3 and 4 series switches. Multimec 5 series matches 3 and 4 series´ dimensions and print layout with an exception of illuminated 3 series. 5G switch has a large diameter snap-on cap retention system and an actuator levelled with the switch body. 5GSH935 has 3.5N actuation force and is available in high temperature material in order to stand today´s advanced soldering processes.  In addition, the switch can be supplied with one or two LEDs integrated on it in order to provide excellent illumination. Night vision (NVIS) LEDs are also available.

Specifications:
  • through hole / surface mount
  • 50mA/24VDC
  • single pole
  • momentary
  • 10.000.000 operations lifetime
  • sealed to IP67
  • 2/3.5/6.5N actuation force
  • temperature range: -40/+160oC
Standard LED colours: -single: blue, green, yellow, white, red; -bi-colour: green/yellow, red/green and red/yellow.


觀看大圖

丹麥 mec multimec NC/NO 5 series switch

NCNO 5 series datasheet Click here

Circuit function:
  • switch over, also known as SPDT - single pole double throw


Specifications:
  • 3 functions: NC, NO and NC/NO
  • surface mount
  • 50mA/24VDC
  • single pole
  • momentary
  • 1.000.000 operations lifetime
  • sealed to IP67
  • 3.5N actuation force
  • temperature range: -40/+160oC
Caps available: 1A/1H/1M/1ZA, 1B/1C+2C/2D, 1DS/1ES/1FS, 1GAS/1GCS, 1JS, 1KS/1KBS/1KCS, 1NS, 1PS/1QS/1RS, 1IS/1LS, 1TS/1US/1VS+1TW/1UW/1VW, 1WAS/1WDS/1WPS, 1XS, navimec 1ZB/1ZCS, controlmec (1Z/1ZW), aquamec


觀看大圖

丹麥 mec 大按鈕, 金屬面

New Caps with Metal Look - Ø30mm Click here
New Caps with Metal Look - Ø30mm & 22x22mm

Both cap series have two optional parts: spacer and sealing. The need for a spacer is dependant on the front panel thickness and the design of the application. In case of harsher environments, the sealing provides an opportunity of having the front panel sealed to IP67.



Both series are designed to be flush with the front panel to give a neat and aesthetic look to the application. They have a low building height of 11mm and activation functions no matter where you push on the cap.

The two series also provide many design options for illumination: full, reverse printed and metal legend; however, in order to have an even illumination, LEDs on PCB are required, making it easy to customise your front panel design.

There are eight standard colours: 7 solid colours and frosted white for illumination. In addition, there are for metal plates as well as positive and negative pad print.

Both 10R/10RF/10RM and 10Q/10QM cap series are based on Multimec 5G switch.

22 x 22 mm 方形按鈕 10Q/10QM datasheet


觀看大圖

丹麥 mec 按鈕開關 Pushbutton Switches

相關連結 Click here
(mec 型錄#6 in pdf 3.62MB)

精密 可靠 耐用 美觀 多樣 適合工業、醫療 等用途



丹麥 mec unimec PCB Mount Pushbutton Switches

unimec switch catalog Click here

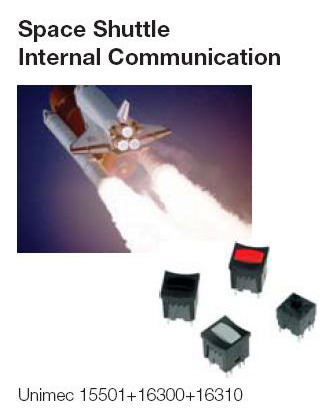

unimec 系列更有用於[太空梭上]

Spec: Max. 250mA/120V/9W AC/6W DC 2 pole, momentary or alternate
8 contact functions through-hole version
temperature range: -40°/+160°C



丹麥 mec unimec 15.4xx basic switch modules

Unimec™ is a reliable switch with a unique contact concept - switch is capable of producing eight different contact functions depending on the PC board layout. unimec™ switches are known for their crisp, audible, tactile feel.

15.420 - high temp, momentary, SILENT, gold contact
15.401 - high temp, momentary, silver contact


 RA15420 is a silent momentary switch with standard gold contacts. The housing is made of high temperature material. RA in front of the part number means that these unimec switches are RoHS compatible in materials as well as processes.

Specifications:

  • max 250mA/ 120V/ 9W AC/ 6W DC
  • 2 pole
  • momentary silent
  • 8 contact functions
  • through-hole version
  • 1.8mm travel
  • 2.5N actuation force
  • gold
  • temperature range -40/+160oC


觀看大圖

丹麥 mec unimec 15.XXX basic switch modules


15.402 - high temp, momentary, gold contact


RA15451-RA15452 are latching switches with standard silver contacts (1) or gold contacts (2) for low level switching. The housing is made of high temperature material. RA in front of the part number means that these unimec switches are RoHS compatible in materials as well as processes.

15.451 - high temp, alternate, silver contact
15.452 - high temp, alternate, gold contact



丹麥 mec multimec 3A switch

相關連結 Click here

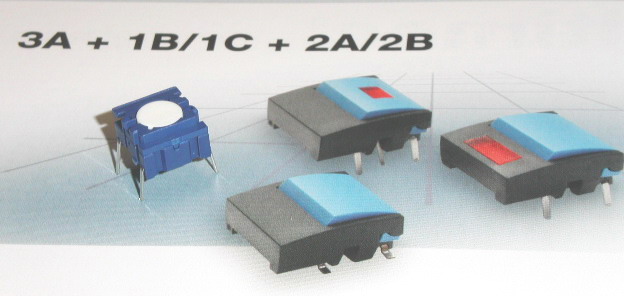

(photo of 3ATL6 switch)

IP67, life time 10 millions

3AT - through hole 3AS - SMD



丹麥 mec multimec 3C switch

相關連結 Click here
(example on military computer)

IP67, life time 10 millions, temp -40°/+160°C, see [models] pic

3CTH9 - through hole type

3CSH9 - SMD type



丹麥 mec multimec 3ET switch

相關連結 Click here

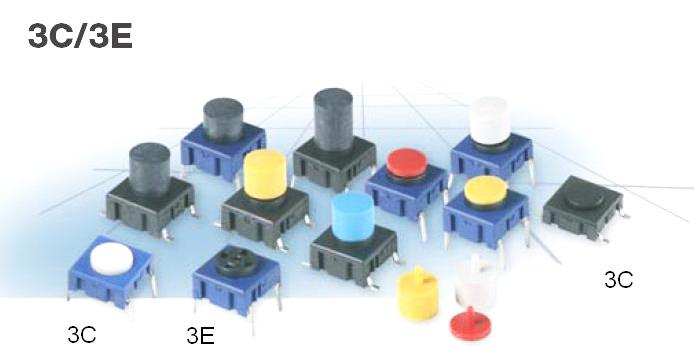

(see photo of 3C & 3E)

3E 開關可配合多種高度/圓形/方形 按鍵

IP67, life time 10 millions

3ET - through hole



丹麥 mec multimec 3ES switch

相關連結 Click here

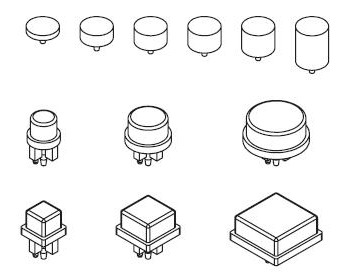

(Actuators & Caps for 3E)

IP67, life time 10 millions

3ES - SMD



丹麥 mec multimec 3F switch

相關連結 Click here
(beautiful Caps for 3F switch)

IP67, life time 10 millions

3FT - through hole 3FS - SMD



丹麥 mec Navimec switches

相關連結 Click here
(型錄 in pdf 1MB)

3A switch + 1ZB cap X 4 3F switch + 1ZC cap X 1 May be delivered as a Module


觀看大圖

丹麥 mec Navimec module

Module with plug JST SMT S10B-PH-SM3-TB or similar, mec recommend using Cable socket: JST PHR-10 or similar Contact: JST SPH-002T-PO.5S or similar


觀看大圖

丹麥 mec multimec Right Angle Switches

Spec.： 1) through-hole only 2) 50mA/24VDC 3) single pole/momentary 4) 10,000,000 op. life time 5) IP67 sealing 6) temp range: low temp: -40°/+115°C


觀看大圖

丹麥 mec 4F 照光/防水面板 輕觸開關 illuminated PCB Switches

4F 照光/防水 開關 spec Click here


illumec 4F - 可沿用3F開關之透光按鍵

丹麥 mec 防水面板輕觸開關, 用於儀錶, 工業,醫療設備等. multimec, illumec 系列使用壽命更可達一千萬按壓次數

Spec.： 1) through-hole or SMD 2) 50mA/24VDC 3) single pole/momentary 4) 10,000,000 op. life time 5) IP67 sealing 6) temp range: switch; -40/°+160°C, LED: -30°/+85°C


觀看大圖

mec Keyswitches 應用實例

相關連結 Click here

應用實例



mec photo album

相關連結 Click here

實物相片
